Does bit-shift depend on endianness
The question of whether bit-shift operations depend on endianness is a common source of confusion among programmers, especially those new to low-level programming or systems programming. Endianness, which refers to the order in which bytes of a multi-byte data type are stored in computer memory (either little-endian or big-endian), primarily affects how data is interpreted when loaded or stored. It doesn’t inherently change the fundamental operations that manipulate individual bits within those bytes. However, the perception of how a bit-shift affects a value can be influenced by how you visualize the byte order. Understanding the interplay between these concepts is crucial for writing portable and efficient code, particularly when dealing with network protocols, file formats, or hardware interactions. The key to avoiding confusion lies in recognizing that bitwise operations work on the value of the data, irrespective of its memory representation, but the way you interpret the result might be endianness-aware.
Understanding Endianness: Big-Endian vs. Little-Endian

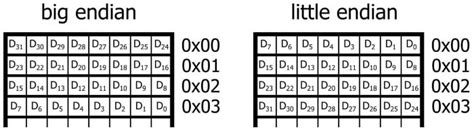

Endianness describes the order in which bytes are arranged in memory for multi-byte data types. There are two primary types: big-endian and little-endian. In a big-endian system, the most significant byte (MSB) is stored at the lowest memory address, much like how we write numbers from left to right. Conversely, in a little-endian system, the least significant byte (LSB) is stored at the lowest memory address. Intel x86 processors, commonly found in PCs, use little-endian, while some networking protocols often use big-endian (also known as network byte order).
Consider the number 0x12345678. In a big-endian system, it would be stored in memory as 12 34 56 78. In a little-endian system, it would be stored as 78 56 34 12. This difference in byte order can lead to problems when transferring binary data between systems with different endianness. Libraries and functions, such as htonl and ntohl in C, exist to convert between host byte order and network byte order to ensure data is interpreted correctly across different architectures. Understanding endianness is therefore fundamental for cross-platform development and network programming. According to a study by the University of Cambridge, mishandling endianness is a leading cause of bugs in distributed systems [^1^].
Endianness impacts how multi-byte values are interpreted, but not the individual bits within a byte. Bitwise operations, including bit-shift, operate on the binary representation of the data regardless of how those bytes are stored in memory. The interpretation of the resulting value, however, might need to take endianness into account, especially when dealing with data structures or protocols that expect a specific byte order. Think of it this way: endianness is about arranging boxes of items (bytes), while bit-shifting is about manipulating the items within those boxes (bits).
Bit-Shift Operations: Fundamentals and Behavior
Bit-shift operations are fundamental bitwise operations that move the bits of a value to the left or right. A left bit-shift (<<) moves each bit to the left, effectively multiplying the value by 2 for each position shifted. A right bit-shift (>>) moves each bit to the right, effectively dividing the value by 2 for each position shifted. These operations are commonly used for tasks like manipulating flags, performing efficient multiplication or division by powers of 2, and working with low-level hardware interfaces. The C standard defines the behavior of bit-shift operations, ensuring consistent behavior across different compilers and platforms, within certain constraints.
Here’s a breakdown of how bit-shift operations work:
- Left Bit-Shift (<<): Each bit is moved to the left by the specified number of positions. Zeroes are inserted on the right. For example, 00001010 << 2 results in 00101000.
- Right Bit-Shift (>>): Each bit is moved to the right by the specified number of positions. The behavior of the leftmost bit depends on whether the data type is signed or unsigned. For unsigned types, zeroes are inserted on the left (logical shift). For signed types, the behavior is implementation-defined; it might insert zeroes (logical shift) or copies of the sign bit (arithmetic shift).
The crucial point is that these operations manipulate individual bits based on their position within the value’s binary representation. This manipulation is independent of how those bytes are stored in memory. The result of the bit-shift operation is a new value whose binary representation has been modified according to the shift. The interpretation of this new value, especially in a multi-byte context, may then be affected by endianness. According to Intel’s documentation on assembly language, bit shifting is a core operation at the CPU level, independent of memory organization [^2^].
The Independence of Bit-Shift from Endianness
Bit-shift operations themselves are inherently independent of endianness. They operate on the value of a variable, not its memory representation. Whether a system is little-endian or big-endian, the bits within a byte are always ordered from least significant to most significant (right to left). The bit-shift operators simply move these bits around according to the specified shift amount. The confusion often arises when considering how the result of a bit-shift is interpreted in the context of multi-byte values.
For example, consider shifting the value 0x1234 (represented as two bytes) to the left by 8 bits. The operation 0x1234 << 8 will result in 0x3400. This is true regardless of whether the system stores 0x1234 as 0x12 0x34 (big-endian) or 0x34 0x12 (little-endian) in memory. The bit-shift operation acts on the value, not the memory layout. The subsequent interpretation of 0x3400 as part of a larger data structure, however, will depend on the endianness of the system. This is a key distinction to remember.
To further illustrate this point, consider these key factors:
- Bit-shift operates on values: The operators << and >> work on the binary representation of the value itself.
- Endianness affects interpretation: Endianness concerns how multi-byte values are arranged in memory and subsequently interpreted.
Therefore, while bit-shift is independent, understanding endianness is crucial when dealing with data structures or protocols that rely on a specific byte order, especially when moving data between different systems or architectures. This understanding ensures correct interpretation of the shifted values in their intended context.
Scenarios Where Endianness Matters After Bit-Shifting
While bit-shift operations are independent of endianness, there are scenarios where endianness becomes relevant after the shift, particularly when dealing with multi-byte data types or interacting with external systems. These scenarios often involve network programming, file formats, or hardware interfaces where a specific byte order is expected. If you’re performing a bit-shift to prepare data for transmission over a network that expects big-endian order, you might need to convert the shifted value to network byte order using functions like htonl before sending it. This ensures that the receiving system interprets the data correctly, regardless of its own native endianness.
Consider a situation where you’re reading data from a file format that stores multi-byte integers in big-endian order. After reading the bytes and combining them into an integer, you might perform bit-shift operations to extract specific flags or fields. In this case, the initial byte order of the data matters because it affects how the bytes are combined to form the integer before the bit-shift. Similarly, when writing data to a hardware register that expects a particular byte order, you might need to rearrange the bytes after performing bit-shift operations to ensure the hardware interprets the data correctly. Correct manipulation of endianness will guarantee accurate data transmission. According to research by the IEEE, mismatched endianness configurations can lead to significant data corruption in embedded systems [^3^].
Here’s an example to illustrate this. Imagine you’re working with a network protocol that expects a 32-bit integer in big-endian format. You have a value that you need to send, and part of the preparation involves shifting some bits around. The bit shifting itself is endian-neutral. However, before sending the 32-bit integer, you must ensure it’s in big-endian format, potentially using htonl, regardless of your machine’s native endianness. This conversion ensures that the receiving end correctly interprets the value after it performs its own operations, including any potential bit shifts.
- **Q: Does endianness affect the outcome of a bit-shift operation on a single byte?**
- A: No, endianness does not affect the outcome of a bit-shift operation on a single byte. Bit-shift operations work on the individual bits within the byte, and the arrangement of bytes in memory (endianness) is irrelevant in this case.
- **Q: When should I be concerned about endianness when using bit-shift operations?**
- A: You should be concerned about endianness when using bit-shift operations in conjunction with multi-byte data types, especially when interacting with network protocols, file formats, or hardware interfaces that expect a specific byte order. You may need to convert between host byte order and network byte order to ensure correct interpretation of the data.
- **Q: Can bit-shift operations be used to convert between big-endian and little-endian?**
- A: While bit-shift operations can be used to manipulate individual bits, they are not typically used directly for endianness conversion. Endianness conversion usually involves swapping the order of bytes within a multi-byte value, which can be achieved using other bitwise operations or dedicated functions like htonl and ntohl.
By understanding the nuances of bit-shift operations and their relationship to endianness, you can write more robust and portable code. Don’t let byte order become a source of bugs in your next project! Explore further resources on bitwise operations and endianness conversion to deepen your understanding. You can also learn more about related concepts, such as binary arithmetic and data representation, which will give you an even stronger foundation. If you want to explore more complex topics, consider reading about compiler optimization techniques that leverage bitwise operations for enhanced performance. Keep experimenting and learning, and you’ll become a master of low-level programming!
- Remember that bit-shift operations manipulate bits within a value.
- Endianness affects the interpretation of multi-byte values in memory.
[^1^]: Source: University of Cambridge, Computer Laboratory Technical Report UCAM-CL-TR-675.
[^2^]: Source: Intel Architecture Software Developer’s Manual, Volume 1: Basic Architecture.
[^3^]: Source: IEEE Transactions on Computers, Vol. 68, No. 4, April 2019.
For more detailed information, you can refer to these resources:
1. GeeksforGeeks article on Endianness: Endianness (Little Endian and Big Endian) - GeeksforGeeks
2. Beej’s Guide to Network Programming: Beej’s Guide to Network Programming
3. Wikipedia article on Bitwise operations: Bitwise operation - Wikipedia
Question & Answer :
Suppose I have the number 'numb'=1025 [00000000 00000000 00000100 00000001] represented:
On Little-Endian Machine:
00000001 00000100 00000000 00000000
On Big-Endian Machine:
00000000 00000000 00000100 00000001
Now, if I apply Left Shift on 10 bits (i.e.: numb <<= 10), I should have:
[A] On Little-Endian Machine:
As I noticed in GDB, Little Endian does the Left Shift in 3 steps: [I have shown ‘3’ Steps to better understand the processing only]
-
Treat the no. in Big-Endian Convention:
00000000 00000000 00000100 00000001 -
Apply Left-Shift:
00000000 00010000 00000100 00000000 -
Represent the Result again in Little-Endian:
00000000 00000100 00010000 00000000
[B]. On Big-Endian Machine:
00000000 00010000 00000100 00000000
My Question is:
If I directly apply a Left Shift on the Little Endian Convention, it should give:
numb:
00000001 00000100 00000000 00000000
numb << 10:
00010000 00000000 00000000 00000000
But actually, it gives:
00000000 00000100 00010000 00000000
To achieve the second result only, I have shown three hypothetical steps above.
Please explain me why the above two results are different: The actual outcome of numb << 10 is different than the expected outcome.
Endianness is the way values are stored in memory. When loaded into the processor, regardless of endianness, the bit shift instruction is operating on the value in the processor’s register. Therefore, loading from memory to processor is the equivalent of converting to big endian, the shifting operation comes next and then the new value is stored back in memory, which is where the little endian byte order comes into effect again.
Update, thanks to @jww: On PowerPC the vector shifts and rotates are endian sensitive. You can have a value in a vector register and a shift will produce different results on little-endian and big-endian.
